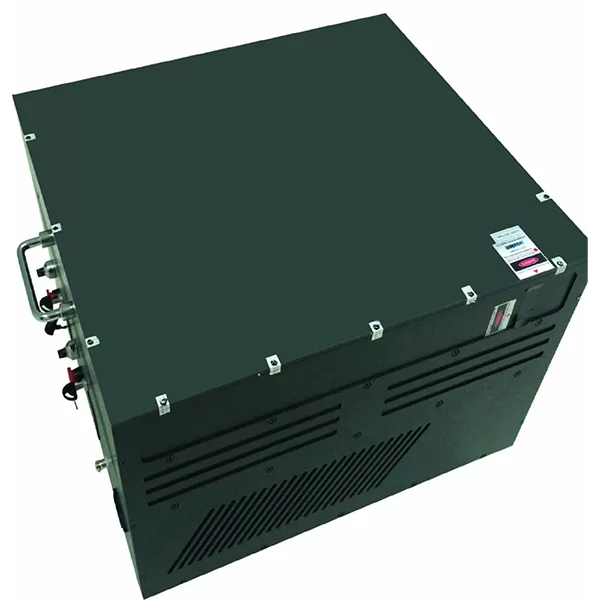

5mJ, 40kHz, 200W high repetition rate solid-state 532nm laser

Product Features
High pulse energy, high repetition rate, and high average power
High repetition rate, low-energy seed laser output
The coupling module has the ability to independently design
The laser power supply can be customized according to the laser amplifier module design
Can be controlled by a computer upper computer

Category:

Application field
Precision microfabrication
spectral analysis
bioimaging

Product Parameters

Average Power ≥200W
Pulse Energy ≥5mJ
Pulse Width ≥200ns
Repetition Rate ≥40kHz
Beam Quality M² < 2
Central Wavelength 532nm
Beam Circularities ≥95%
Divergence Angle <1mrad(full angle)
Power Stability <1%RMS over 10hours
Pointing Stability <50urad/°C
Polarization Ratio >500:1
Control Mode Gate, Trigger
